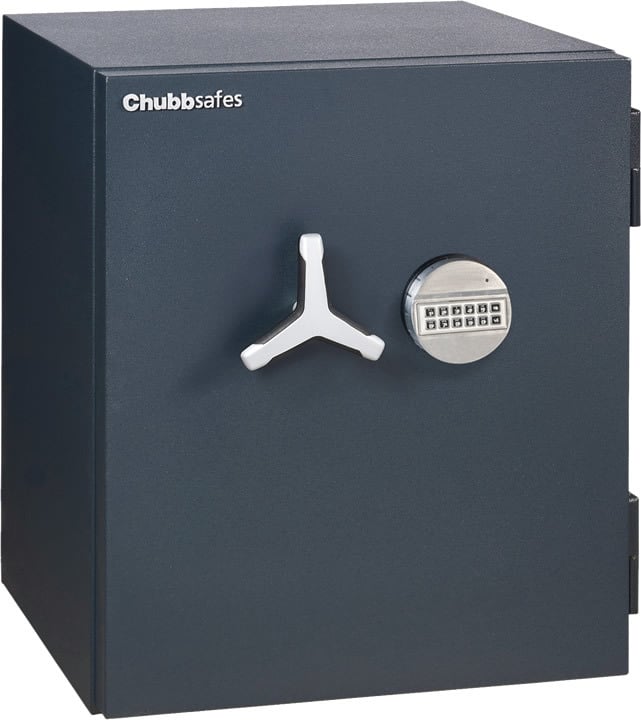

Chubbsafes DuoGuard Model 110, Grade 1, with Electronic Lock

• Combined protection against burglary and fire. DuoGuard is certified EN 1143-1 for burglary protection and for fire protection of paper documents for up to 60 (EN 1047-1).
• Ideal for paper and document storage, as all sizes support A4 document storage
• Ergonomic soft-touch handle for comfort in use
• Enhanced security with three-way solid steel bolt work, active re-locker, and anti-drilling plates
• EN 1300-certified Class A key lock and/or Class B high-security electronic lock
• Customizable capabilities for maximized storage capacity: removable shelf, extendable shelf, extendable drawer, lockable compartment, suspension file frame, extendable tray, shelf for hanging files

FIRE TESTING

• DuoGuard has been approved in accordance with the European standard, EN 1047-1 in fire class S 60 P, which means the safe will protect paper documents for one hour. This certification was awarded by ECB‚Ä¢S (European Certification Board‚Ä¢Security Systems). To comply with this standard, DuoGuard has been exposed to a constantly heated environment of over 1,000¬∞C, during which temperature is measured and relative air humidity checked.

STAGE 1

• The safe is placed in a furnace and heated to a constant temperature of almost 1,000¬∞C for 60 minutes to simulate the effects of a severe fire. Its internal temperature is measured during the heat and must never exceed 170¬∞C, which is the temperature at which paper start to suffer damage.

STAGE 2

• The safe is removed from the furnace and cooled. The internal temperature continues to be measured during the subsequent cooling down period. When opened, it must not exceed 150¬∞C.

BURGLARY TESTING

• DuoGuard has been approved by ECB‚Ä¢S in accordance with the European EN 1143-1 standard for burglary protection in Grades 0 and I. A range of attack tools were used to test DuoGuard‚Äôs level of resistance, ranging from basic tools to sophisticated thermal and electrical equipment.

LOCK OPTIONS
As the primary locking option, DuoGuard safes is fitted with high-security electronic lock (Class B). Dual locking is available. The primary lock can be supplemented by a combination lock and an electronic lock can be fitted. All locks are independently tested and are certified in accordance with the EN 1300 standard. DuoGuard’s high-security electronic lock – certified Class B – includes the following features, easily programmed by the owner:

• 1 master code, 1 supervisor code, and 8 user codes.
• Time delay of up to 99 minutes between lock being operated and the door being opened.
• Opening window between 1‚Äì19 minutes.
• Equipped with time delay override.
• Optional function to raise the silent alarm if the lock is being opened under duress.



Specification:
