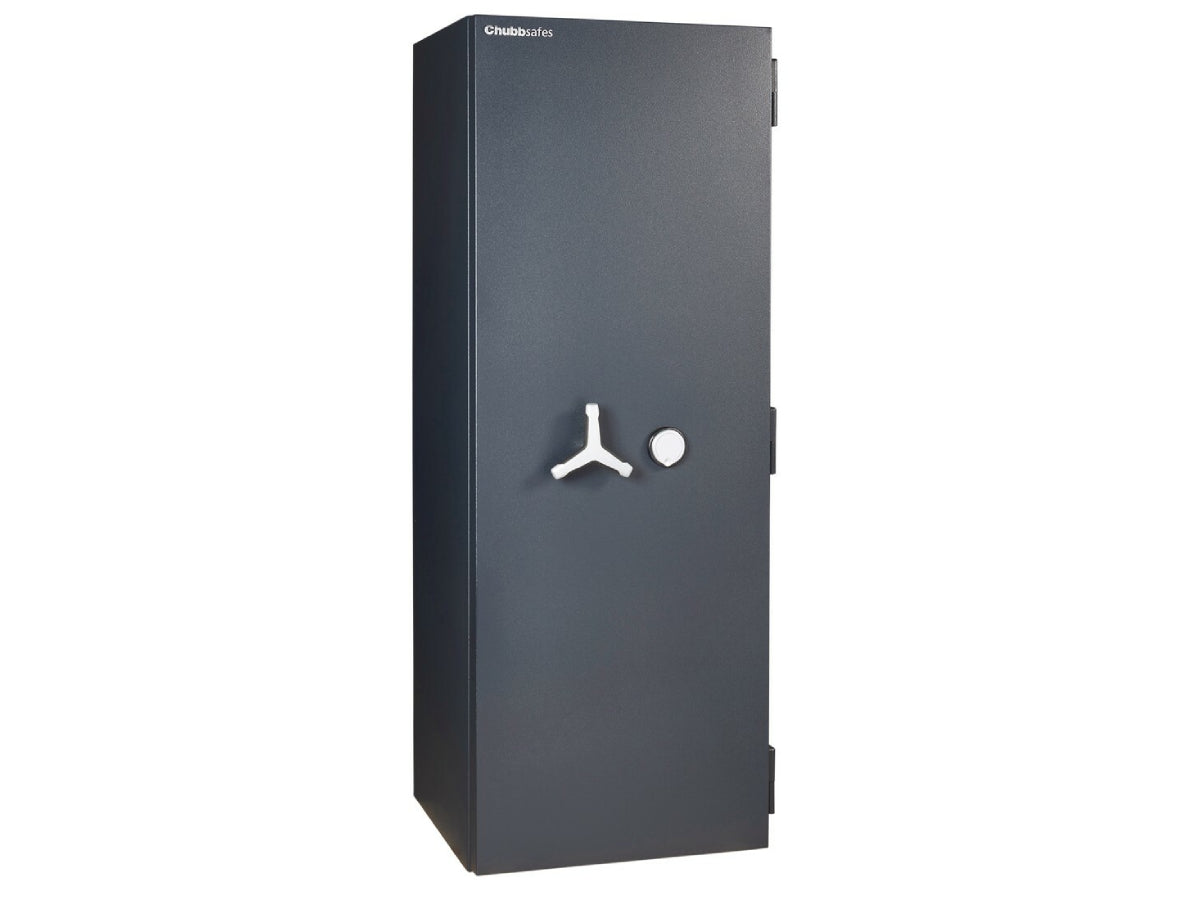

Protect your valuables and documents from both fire and theft in your office or retail environment: DuoGuard from Chubbsafes is a range of certified safes providing EN 1143-1 burglary protection and EN 1047-1, respectively NT Fire 017 fire resistance. You want a robust but lightweight safe to keep your theft-prone, valuables and documents secure in your office or retail environment. DuoGuard from Chubbsafes offers combined fire and burglary protection certified by ECB•S and SP Technical Research Institute of Sweden, two leading accreditation companies. Thanks to the new Dualite torch-resistant barrier material, these customizable safes are designed to provide optimal security even at a reduced weight.
CONSTRUCTION:
             New composite, Dualite torch-resistant barrier-material to ensure dual protection while reducing total weight to minimize transport and installation cost, and to support above ground floor installations.
PRODUCT BENEFITS
- Combined protection against burglary and fire. DuoGuard is certified EN 1143-1 for burglary protection and for fire protection of paper documents for up to 60 (EN 1047-1).
- Ideal for paper and document storage, as all sizes support A4 document storage
- Ergonomic soft-touch handle for comfort in use
- Enhanced security with three-way solid steel bolt work, active re-locker, and anti-drilling plates
- EN 1300-certified Class A key lock and/or Class B high-security electronic lock
- Customizable capabilities for maximized storage capacity: removable shelf, extendable shelf, extendable drawer, lockable compartment, suspension file frame, extendable tray, shelf for hanging files
FIRE TESTING
- DuoGuard has been approved in accordance with the European standard, EN 1047-1 in fire class S 60 P, which means the safe will protect paper documents for one hour. This certification was awarded by ECB•S (European Certification Board•Security Systems). To comply with this standard, DuoGuard has been exposed to a constantly heated environment of over 1,000°C, during which temperature is measured and relative air humidity checked.
STAGE 1
- The safe is placed in a furnace and heated to a constant temperature of almost 1,000°C for 60 minutes to simulate the effects of a severe fire. Its internal temperature is measured during the heat and must never exceed 170°C, which is the temperature at which paper start to suffer damage.
STAGE 2
- The safe is removed from the furnace and cooled. The internal temperature continues to be measured during the subsequent cooling down period. When opened, it must not exceed 150°C.
BURGLARY TESTING
- DuoGuard has been approved by ECB•S in accordance with the European EN 1143-1 standard for burglary protection in Grades 0 and I. A range of attack tools were used to test DuoGuard’s level of resistance, ranging from basic tools to sophisticated thermal and electrical equipment.
Specification:
| External Dimensions (mm) | 1600h x 600w x 561d |
|---|---|
| Internal Dimensions (mm) | 1500h x 500w x 386d |
| Weight | 337 kg |
| Volume | 290 litres |
| Fire Resistance |
60 minutes |
| Safe Locking |
Key lock |
| Safe Grade |
Grade 1 |
| Shelves (included with safe) |
3 |
