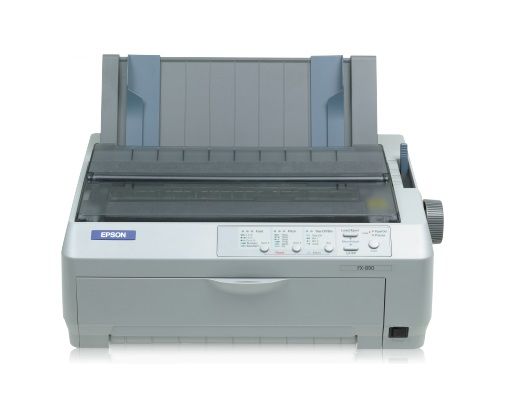

Epson FX-890 Dot Matrix Printer

Epson FX 890 High Volume 9-Pin Dot Matrix Printer

The new Epson FX-890 dot matrix printer is built to offer faster printing, better reliability and flexible paper handling, in a stylish and compact design. It is perfect for production, car dealers, warehouses, labs, wholesalers, freight forwarders, finance departments and trade users who want high performance at low cost.

FX-890 dot matrix printer, 18 pins, 80 column, original + 6 copies(pull tractor), 566 cps UHSD (10 cpi), ESC/P, IBM PPDS , 16 fonts, 8 BarCode fonts, single sheet and continuous, 4 paper paths, paper park, USB and Parallel I/F, 1 slot for opt. Epson Type B I/F card.

Features

Class-leading speed – up to 680cps
Compact, robust and reliable
Long-lasting ribbon
Handles 1 original + 5 copies
Flexible paper handling from front, top, rear and bottom
Handles media up to 80 columns wide
Two optional cut sheet feeders to store different forms
Second push tractor option to accommodate two continuous forms
Standard Parallel and USB interfaces
Optional wireless (Not available in all countries) and wired network interfaces

Specifications

Technology

• Printing Method: Impact dot matrix
• Number of Pins:¬† 9 pins
• Number of columns: 80¬†columns
• Needles: 9 Needles

Print

• Printing Speed: HighSpeed-Draft:¬†10¬†cpi:¬†566¬†chars/s, 12¬†cpi:¬†680¬†chars/s, Draft:¬†10¬†cpi:¬†419¬†chars/s, NLQ:¬†10¬†cpi:¬†104¬†chars/s, 12¬†cpi:¬†125¬†chars/s

• Carbon Copies:¬† 6¬†plus one original¬†
• Character Tables: PC437, PC708, PC720, PC850, PC858, PC864, ISO-8859-15, Roman 8
• Printing Resolution:¬† 240¬†x¬†144¬†dpi


Connectivity

• Interfaces: Bidirectional parallel, Ethernet interface (100 Base-TX / 10 Base-T) (optional), USB 2.0 Type B, RS-232 (optional), Type B interface


Paper / Media Handling

• Document Feed: Single sheet¬†front and rear, Continuous paper¬†front and rear, Paper output¬†rear, Optional Automatic Document Feed (CSF): 150

• Paper Formats: Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard


General

• Energy Use: 53¬†W, 3.4¬†W¬†(standby)

• Product dimensions: 414‚Ä鬆x¬†350¬†x¬†168¬†mm¬†(Width x Depth x Height)

• Product weight: 7.2 kg
• Temperature: Operation¬†5¬∞ C – 35¬∞ C, Storage¬†5¬∞ C – 35¬∞ C

• Humidity: Operation¬†10% – 80%, Storage¬†10% – 80%
• Compatible Operating Systems:¬† Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP

• Included Software: Epson Status Monitor
• Mean Time Between Failures: 20,000¬†Hours

• Print Head Life: 400¬†Million Strokes/Wire
• Sound Pressure:¬†Operation:¬†55¬†dB (A)
• Memory 128 kB¬†included
• Ribbon Yield: 7500000¬†characters¬†Black Draft

• What’s in the box: Driver and utilities (CD), Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
