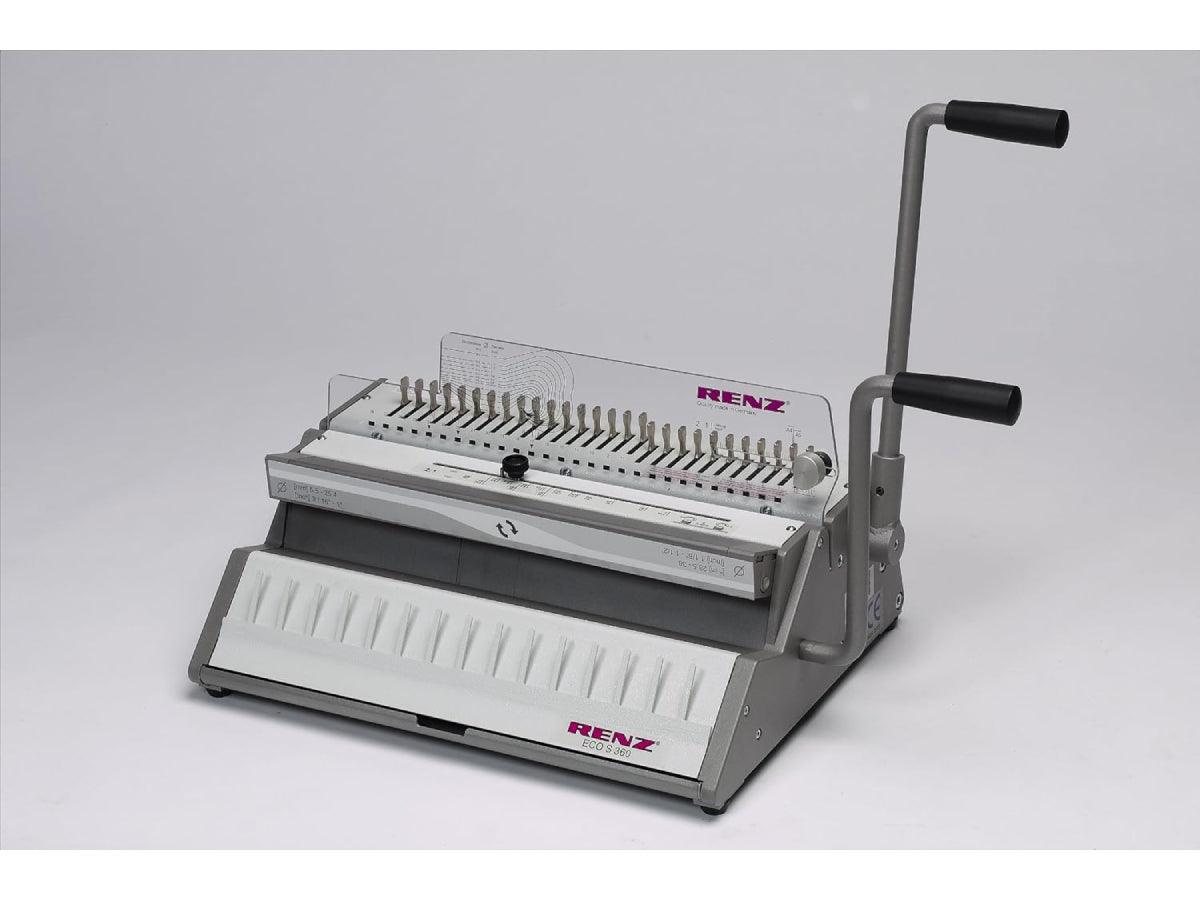

- 2:1 pitch manual punching and binding machine designed for regular use in a small to medium sized office.
- Binds up to 340 sheets
- Closure control guarantees easy ring wire closure for perfect presentations every time
- Gauge to alter margin for a stronger bind
- Special hardened punch pins for long lasting life
- Staggered punching pins for better punching
- QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3
- Adjustable side lay for perfect punching registration
- Easy to empty sliding waste tray
- Measures the document or ring wire size
- Parallel adjustment guarantees a perfect bind every time
- Heavy duty construction & compact design
* All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 – 2.0 mm.
|
SPECIFICATIONS |
|
|
Brand |
Renz |
|
Type |
Wire Binding Macine |
|
Model |
Eco S 360 |
|
Punching capacity sheets per hr |
12,000 |
|
Min. punching width |
10 mm |
|
Max. punching width |
360 mm |
|
Min. unpunched length |
50 mm  |
|
Max. unpunched length |
500 mm  |
|
Max. punching thickness |
 2.5 mm |
|
Punching operation |
Manual  |
|
Punch dies available |
Oblong 5.5 x 3.5 mm  |
|
Pitch |
 2:1 |
|
Binding thickness |
1 – 34 mm |
|
Binding element √ò |
6.9 – 38 mm |
|
Min. binding width |
10 mm  |
|
Max. binding width |
360 mm  |
|
No. of books output per hr |
200  |
|
No. of calendars output per hr |
160  |
|
Machine dimensions L x W x H |
330 x 560 x 180 mm  |
|
Machine weight |
13 kg  |
|
Machine packing dimensions L x W x H |
 620 x 480 x 345 mm |
|
Machine weight with packing |
620 x 480 x 345 mm  |
|
Product Quantity |
 1 |
