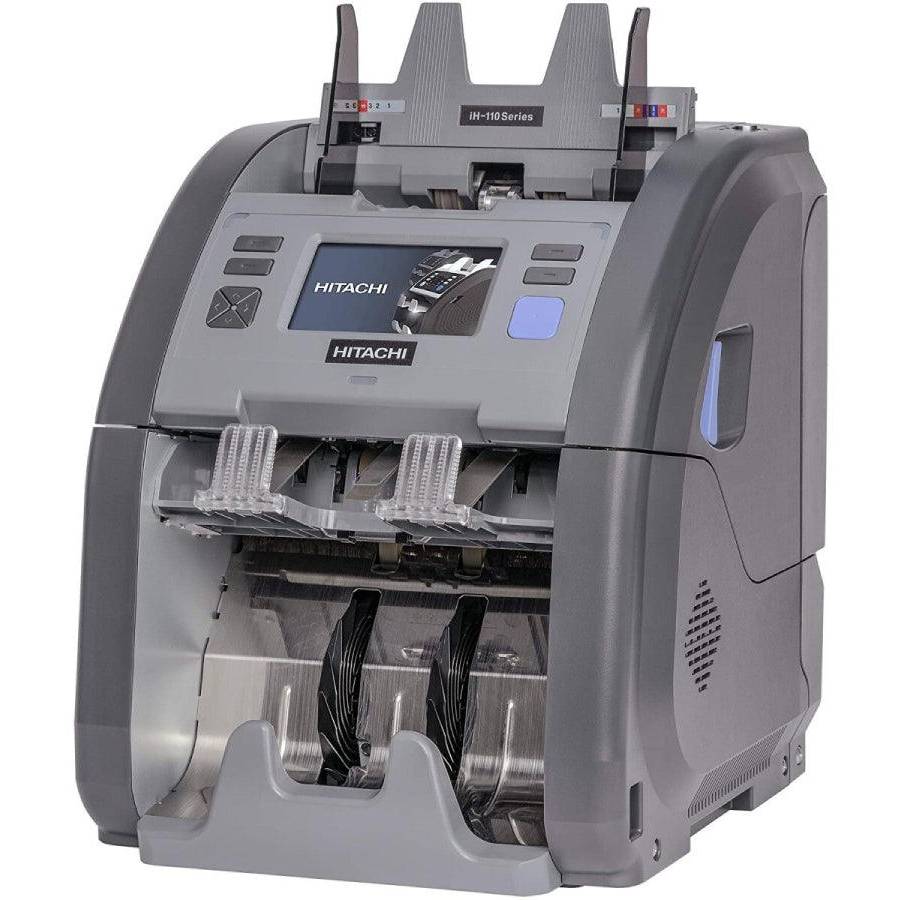

Hitachi IH-110 Currency Counter Cum Discriminator

Hitachi IH-110 Currency Counter Cum Discriminator

High-speed image processing technologies

1. Full-Color Dual CIS
2. Capture and Record of OCR, MICR, and Barcode / Deposit full-color images
3. Can be installed in more than 40 currencies
4. Mix & Multi-currency mode (Count mixed currencies and automatic recognition)



Advanced sensor technologies

1. Equipped with range of counterfeit detection technologies.
2. Reliable fitness sorting
3. Excellent tape detection performance



Remote monitoring system by ‘SIM’

1. Connect with SIM link



User-friendly system

1. 2 Teller mode indicator and Multi user mode available
2. 4.3” Full color touch screen
3. Easily look up the all sensor data
4. Simple and easy operation
5. Easy maintanance



iH-110 series is an ideal choice for :

1. Bank branches, Casinos, Exchange offices, Public offices, Retailers, Cash centers



Specification:

• Currency: Up to 40 currencies, 16 currencies(Mixed and multi)
• Operating speed:
  • Value counting with counterfeit detection: MAX 1300 NPM (Notes per minute)
  • Fitness sorting with counterfeit detection: MAX 1200 NPM¬†
  • Capture and Record: OCR, MICR, Tickets, etc. : MAX 1200 NPM
  • Capture and Record: Full color image with OCR: MAX 1200 NPM
• Pocket Capacity:
  • Hopper: 500 Notes
  • Reject pocket: 60 notes(MAX¬†100 notes)
  • Stackers: 200 notes(MAX 300 notes)
• Display: 4.3″ full color LCD touch screen
• Mode: Mix(face, orientation)/ Different Denominations(Face, Orientation)/ Count/ Serial No./ Fitness etc.
• Dimension(W/D/H): 300 x 320 x 315mm
• Weight: 13kg
• Interface: LAN(Giga), USB(H), USB(S), RS232C
• Power supply: 100 ~ 240V ¬±10%, 1.2A ~ 0.6A, 50/60HZ
• Sensor Info:
  • Full color dual CIS: 8 Images, IR Transmission, IR reflection, RGB
  • Full line magentic sensor(16 channel)
  • Thickness(Tape)/ double detection sensor(12 channel/ 2 channel)
  • UV reflection(4 channel), Transmission(4 channel), Fluorescence(4 channel)
• Options: External LCD display / OSD(On Screen Display : Video surveillance system) / Thermal printer
